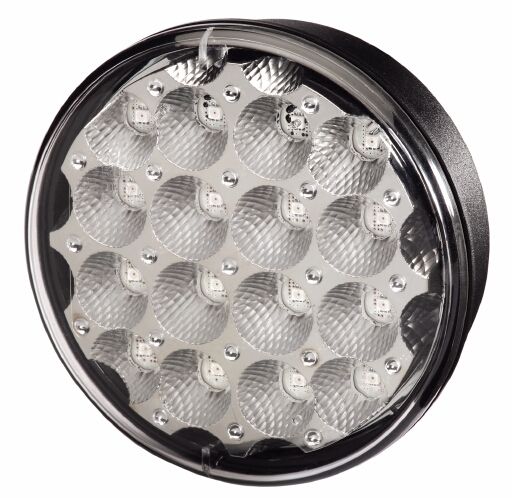

Takasumuvalo LED 9-32V 122,5 mm Ø
Hella
Asennusohjeet

Tuoteinfo

Takasumuvalo LED 122,5 mm Ø Jännite 9-32V

Ominaisuudet

Asennusmalli: Pinta-asennus
Kiinnitysmalli: vaakasuoraan asennukseen
Lyhdyn muoto: LED
Lamppumalli: LED
Jännite [V]: 24 V
Jännite [V]: 12 V
Asennuspuoli: Oikea
Asennuspuoli: Vasen

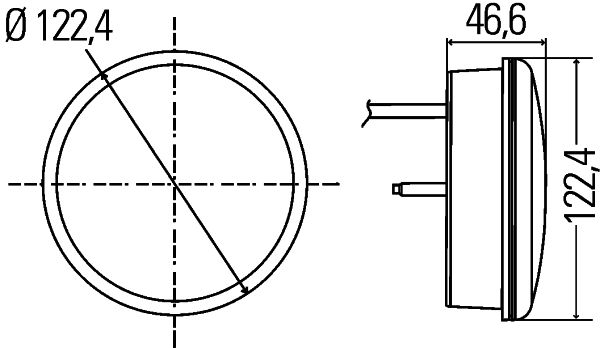

Korkeus [mm]: 47 mm
Pituus [mm]: 47 mm
Läpimitta [mm]: 123 mm
Valotoiminto: Sumutakavalolla (LED)
Lyhtytoimintojen määrä: 1
Pistokemalli: avoimet kaapelin päät
Suojausmalli [IP-koodi]: IP6K9K
täyttää ECE-normin: R38
täyttää ECE-normin: R23
täyttää ECE-normin: R10
Rekisteröity tyyppi: ADR/GGVS-hyväksytty
LED-määra: 16
Lasin väri: Lasinkirkas
Kaapelinmitta [mm]: 500 mm
Kopan väri: Musta
Ammattilaisen on tehtävä asennus/irrotus!:

Tekniset tiedot

Regarding single or double function lamps with LEDs without flasher function

In connection with these low powers, which are very different from bulb versions, there can be problems during operation on various traction vehicles because further lighting functions are detected by some traction vehicles. This is a vehicle comfort function which is not required by legislation and does not release drivers from their obligation to see for themselves that the lighting equipment is working. Here, too, faulty diagnoses can be a result of the lower power levels involved (instrument panel in the driver cab indicates a bulb failure although the function is working). The functional ability of these light failure checks can only be established by the vehicle manufacturer. Operation of the light with alternating current or pulsed direct current is not permitted! The indiv
